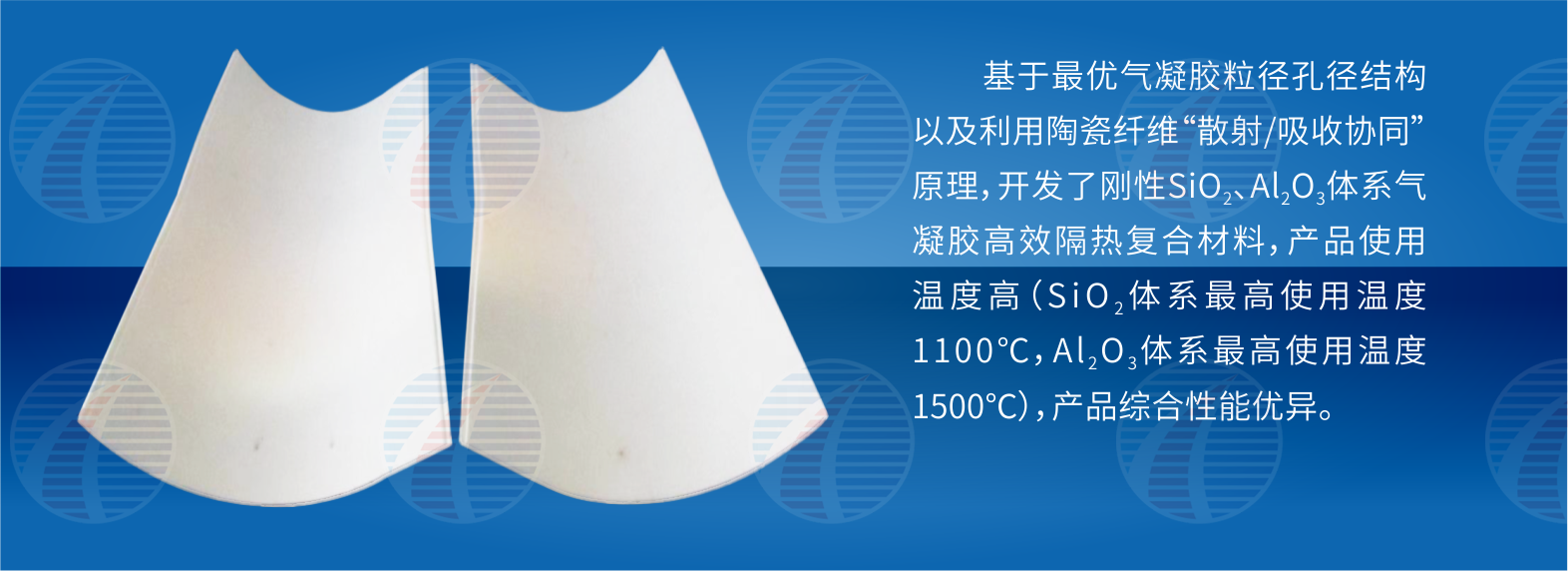

高效隔热系列
特点
优异的隔热性能、耐高温（最高使用温度可高达1500℃）、可根据客户需要定制复杂形状产品、优异的憎水性
性能参数
| 性能参数 | RLYS-1 | RLYS-4 | RLYS-5 | RLBS-1 | RLCS-4 | RLMS-7 | RLGS-7 | RLZS-5 | 测试标准 |
| 使用温度 (℃) | 650 | 650 | 650 | 650 | 800 | 800 | 800 | 800 | / |
| 密度 (g/cm³) | ≤0.25 | ≤0.29 | ≤0.32 | ≤0.25 | ≤0.28 | ≤0.35 | ≤0.36 | ≤0.33 | GB/T 17911-2018 |
| 常温热导率(W(m·K)) | ≤0.020 | ≤0.020 | ≤0.020 | ≤0.020 | ≤0.022 | ≤0.025 | ≤0.025 | ≤0.025 | GB/T10295-2008 |
| 高温热导率(W/(m·K)) | ≤0.025 (600℃) | ≤0.025(600℃) | ≤0.028(600℃) | ≤0.035(600℃) | ≤0.040(800℃) | ≤0.050(800℃) | ≤0.050(800℃) | ≤0.050(800℃) | YB/T 4130-2005 |
| 3%ε压缩强度(MPa) | ≥0.05 | ≥0.03 | ≥0.04 | ≥0.08 | ≥0.12 | ≥0.15 | ≥0.15 | ≥0.15 | GB/T 1964-1996 |
| 弯曲强度 (MPa) | ≥0.5 | ≥0.5 | ≥0.5 | ≥0.5 | ≥1.0 | ≥1.0 | ≥1.0 | ≥1.0 | GB/T 1965-1996 |
| RT~600℃比热容(J/(g·K)) | ≥0.5 | ≥0.5 | ≥0.5 | ≥0.5 | ≥0.5 | ≥0.5 | ≥0.5 | ≥0.5 | GJB 330A-2000 |
| 质量吸湿率(%) | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | GB/T 5480-2017 |
| RT~600°℃线膨胀系数(×10-6/℃) | ≤7.0 | ≤7.0 | ≤7.0 | ≤7.0 | ≤7.0 | ≤7.0 | ≤7.0 | ≤7.0 | GB/T 16535-2008 |
| 性能参数 | RLCSG-1 | RLMSG-1 | RLZSG-1 | RLMSA-1 | RLDASA-1 | 测试标准 |
| 使用温度 (℃) | 1000 | 1100 | 1100 | 1200 | 1500 | / |
| 密度 (g/cm3) | ≤0.31 | ≤0.41 | ≤0.41 | ≤0.31 | ≤0.33 | GB/T 17911-2018 |
| 常温热导率(W(m·K)) | ≤0.030 | ≤0.038 | ≤0.028 | ≤0.040 | ≤0.050 | GB/T 10295-2008 |
| 高温热导率(W(m·K)) | ≤0.055(800℃) | ≤0.065(800℃) | ≤0.040(800℃) | ≤0.060(800℃) | ≤0.070(800℃) | YB/T 4130-2005 |
| ≤0.065(1000℃) | ≤0.085(1000℃) | ≤0.045(1000℃) | ≤0.090(1000℃) | ≤0.120(1100℃) | ||
| 3%ε压缩强度(MPa) | ≥0.15 | ≥0.15 | ≥0.15 | ≥0.12 | ≥0.1 | GB/T 1964-1996 |
| 弯曲强度 (MPa) | ≥0.8 | ≥1.0 | ≥1.0 | ≥0.80 | ≥0.8 | GB/T 1965-1996 |
| RT~600℃比热容(J/(g·K)) | ≥0.5 | ≥0.5 | ≥0.5 | ≥0.5 | ≥0.5 | GJB 330A-2000 |
| 质量吸湿率 (%) | ≤1.0 | ≤1.5 | ≤1.0 | ≤2.0 | ≤2.0 | GB/T 5480- 2017 |
| RT~600℃线膨胀系数(×10-6/℃) | ≤7.0 | ≤7.0 | ≤7.0 | ≤7.0 | ≤7.0 | GB/T 16535-2008 |
应用领域
管道、设备、船舶、炉体的隔热保温
